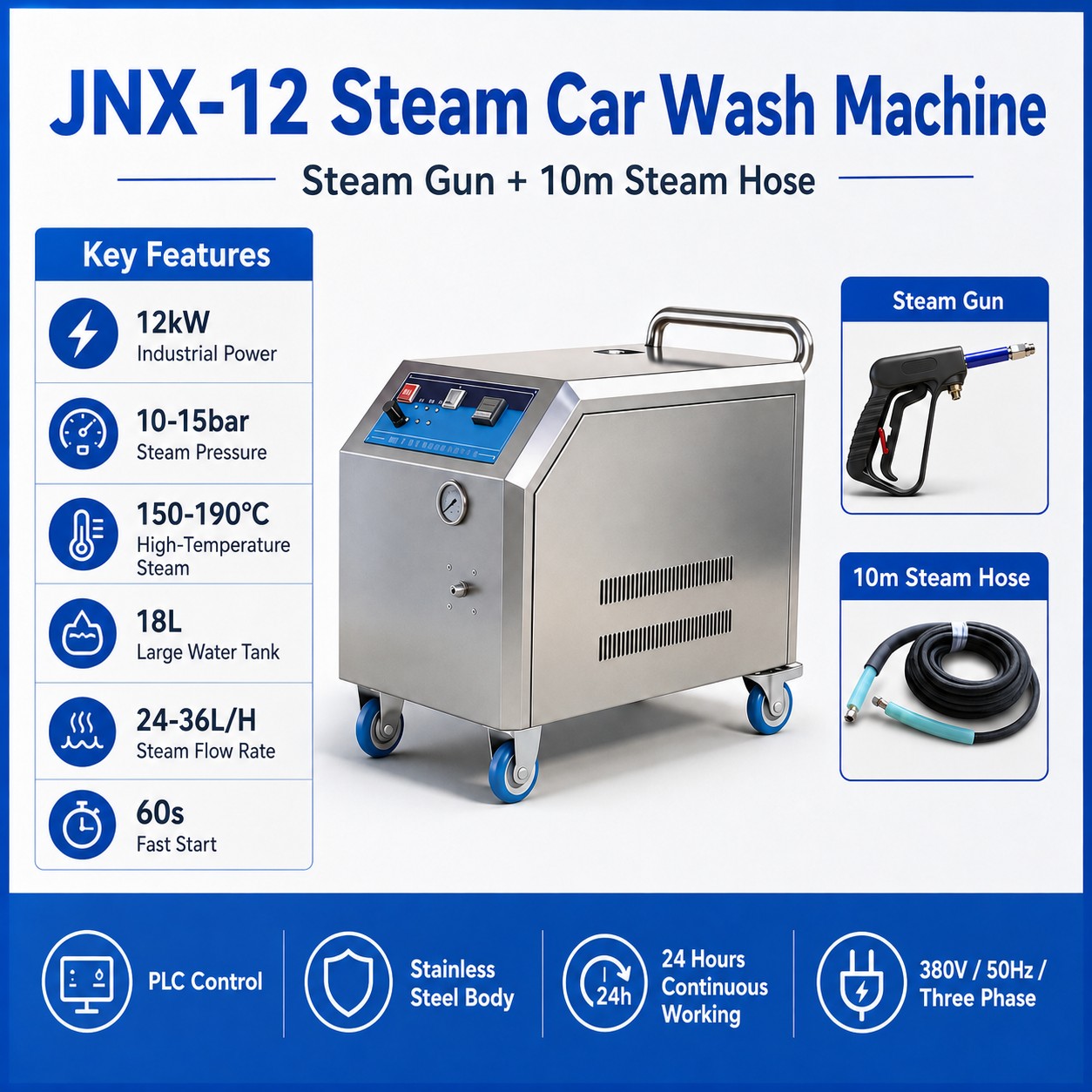

JNX-12 Steam Car Washing Machine
The JNX-12 is a 12kW industrial steam car washer delivering 10-15 bar steam pressure at 150-190°C. Built with a stainless-steel body, PLC control, and a 18L water tank, it supports 24-hour continuous operation for auto detailing shops, service stations, and industrial cleaning tasks.
Key Features
12kW Industrial Power
High-performance heating for fast steam generation and stable output.
10-15 bar Steam Pressure
High-pressure steam penetrates dirt and grime for deep cleaning.
150-190°C High-Temperature Steam
Sanitizes surfaces and breaks down oil and grease without chemicals.
18L Water Tank
Large capacity supports extended cleaning sessions with fewer refills.
10m Steam Hose
Extended reach for flexible operation around vehicles and equipment.
24-Hour Continuous Operation
Built for commercial and industrial workloads.
PLC Control
Intelligent control system with reliable performance and easy operation.
Stainless Steel Body
Durable, corrosion-resistant construction for long service life.
Technical Specifications
| Product Name | Steam Car Washing Machine |
| Brand | Jieneng |
| Model | JNX-12 |
| Power | 12kW |
| Voltage | 380V / 50Hz / Three-phase |
| Steam Pressure | 10-15 bar |
| Steam Temperature | 150-190°C |
| Steam Flow Rate | 24-36 L/h |
| Heating Start-up Time | 60 seconds |
| Water Tank Capacity | 18L |
| Steam Hose Length | 10 meters |
| Steam Gun Quantity | 1 pc |
| Control System | PLC Control |
| Shell Material | Stainless Steel |
| Inner Tank Material | Stainless Steel |
| Equipment Size | 720×490×700 mm |
| Equipment Weight | 180 kg |
| Package Size | 870×605×905 mm |
| Package Weight | 45 kg |
| Continuous Working Time | 24 hours |
| Safety Protection | Water Shortage, Overpressure, Leakage, Emergency Stop |
| Warranty Period | 1 Year |
| Place of Shipment | Zhujin Road 30, Shantou, Guangdong, China |
Product Details
Cleaning Applications
Dashboard & Interior Cleaning
Suitable for dashboards, center consoles, and air vents for thorough detail cleaning.
Window Gap Cleaning
High-temperature steam reaches into narrow edges and seams, making dirt easier to remove.
Deep Wheel Cleaning
High-temperature steam quickly softens grime for thorough wheel and rim cleaning.
Tire Edge Detail Cleaning
Steam reaches tire edges and corners, making detail cleaning faster and easier.
Deep Cabin Crevice Cleaning
Reaches interior corners and gaps for more precise detail cleaning.
Streak-Free Window Cleaning
Steam plus wiping leaves glass cleaner and brighter with less effort.
Engine Bay Degreasing
High-temperature steam quickly softens oil sludge and improves cleaning efficiency.
Certifications
JIENENG holds 7 international certifications including CE, ISO 9001, ISO 14001, ISO 45001, EAC, ATEX, High-Tech Enterprise.
Interested in the JNX-12 Steam Car Washer?
Contact us for a quote or more information. OEM/ODM services available.
