JNX-72 Industrial Steam Cleaner
The JNX-72 is a 72kW ultra-heavy-duty industrial steam cleaner delivering 20-30 bar steam pressure at 170-210°C. Engineered for the most demanding degreasing and surface cleaning tasks in petrochemical plants, energy equipment, ship maintenance, pharmaceutical workshops, food processing, and heavy machinery manufacturing, it features a 60L stainless-steel water tank, PLC intelligent control, and supports 24-hour continuous operation.
Key Features
72kW Ultra-High Power
Top-tier heating capacity delivers massive steam output for continuous heavy-duty industrial cleaning.
20-30 bar Steam Pressure
High working pressure effectively removes hardened grease, carbon deposits, and stubborn contamination.
170-210°C High-Temperature Steam
High-temperature steam softens grease and sanitizes surfaces without relying on harsh chemicals.
140-210 L/H Steam Flow Rate
Large steam flow supports efficient cleaning over large equipment and extended work areas.
60L Water Tank
Extra-large tank capacity enables long-duration operation with fewer refills.

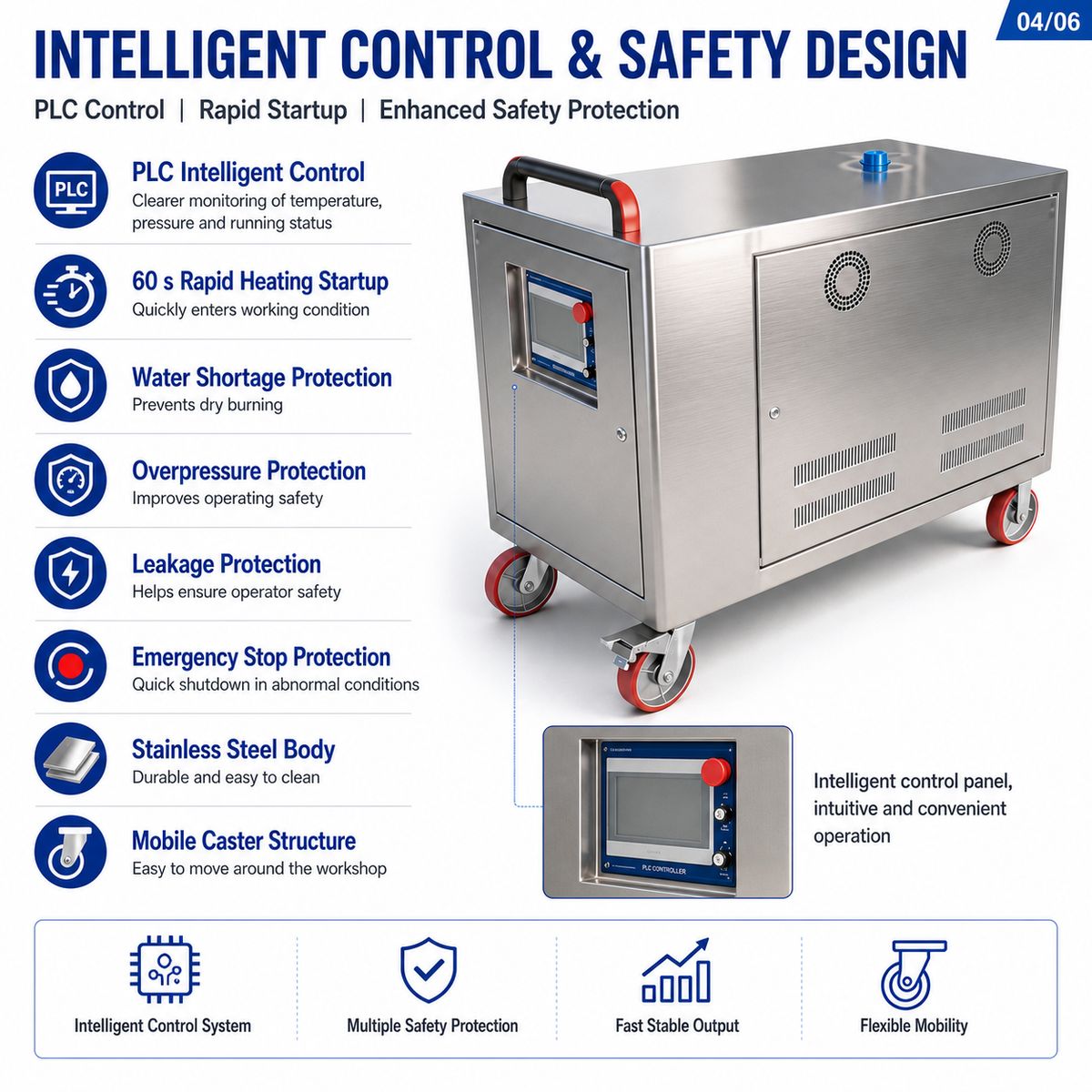

PLC Intelligent Control
Touch-screen control panel monitors temperature, pressure, and running status in real time.
24-Hour Continuous Operation
Engineered for non-stop industrial workloads with multiple safety protections.
Stainless Steel Construction
Corrosion-resistant stainless-steel shell and inner tank for long service life in harsh environments.

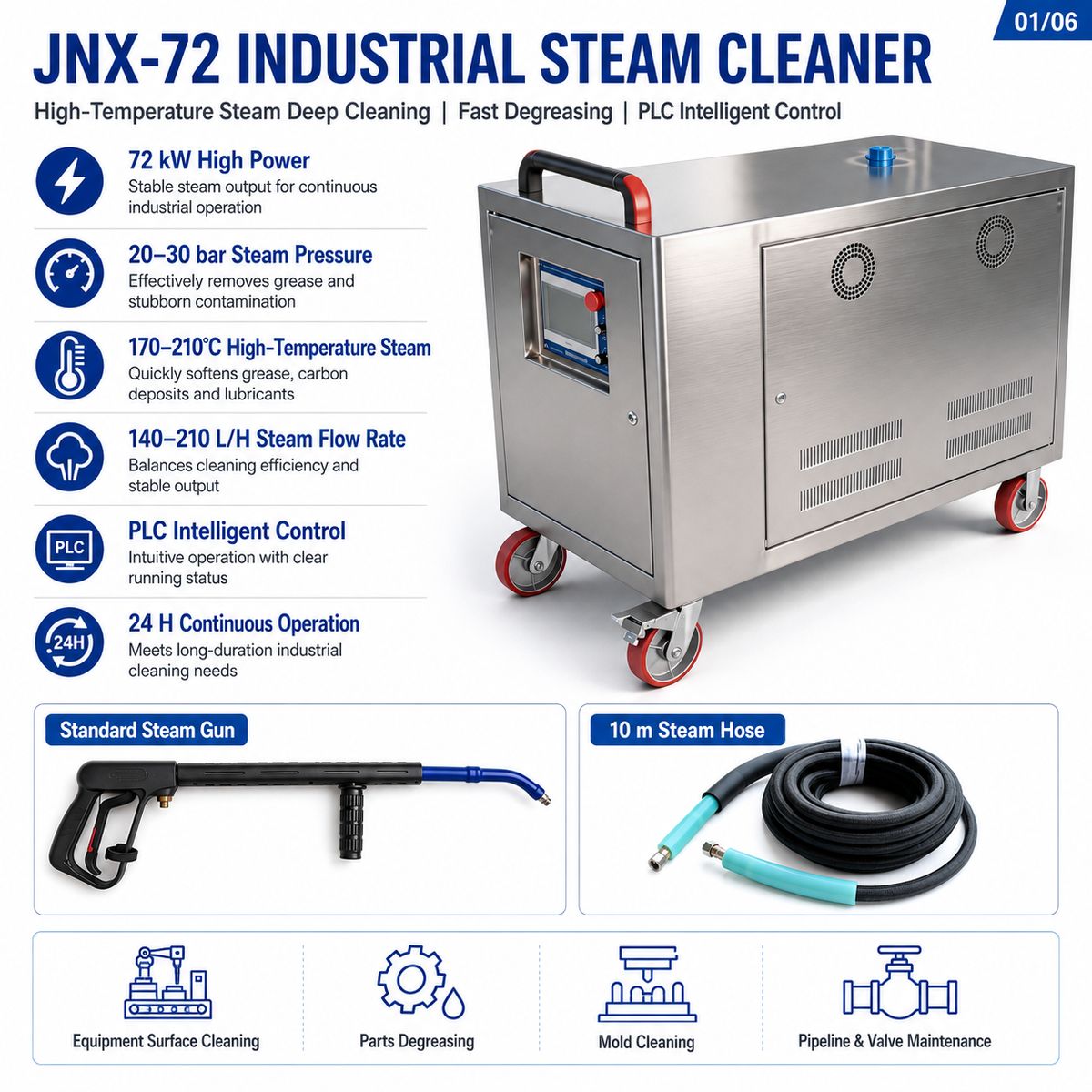

Technical Specifications
| Product Name | Industrial Steam Cleaner |
| Brand | Jieneng |
| Model | JNX-72 |
| Power | 72 kW |
| Voltage | 380V / 50Hz / 3 Phase |
| Steam Pressure | 20-30 bar |
| Steam Temperature | 170-210°C |
| Steam Flow Rate | 140-210 L/H |
| Heating Start-up Time | 60 seconds |
| Water Tank Capacity | 60L |

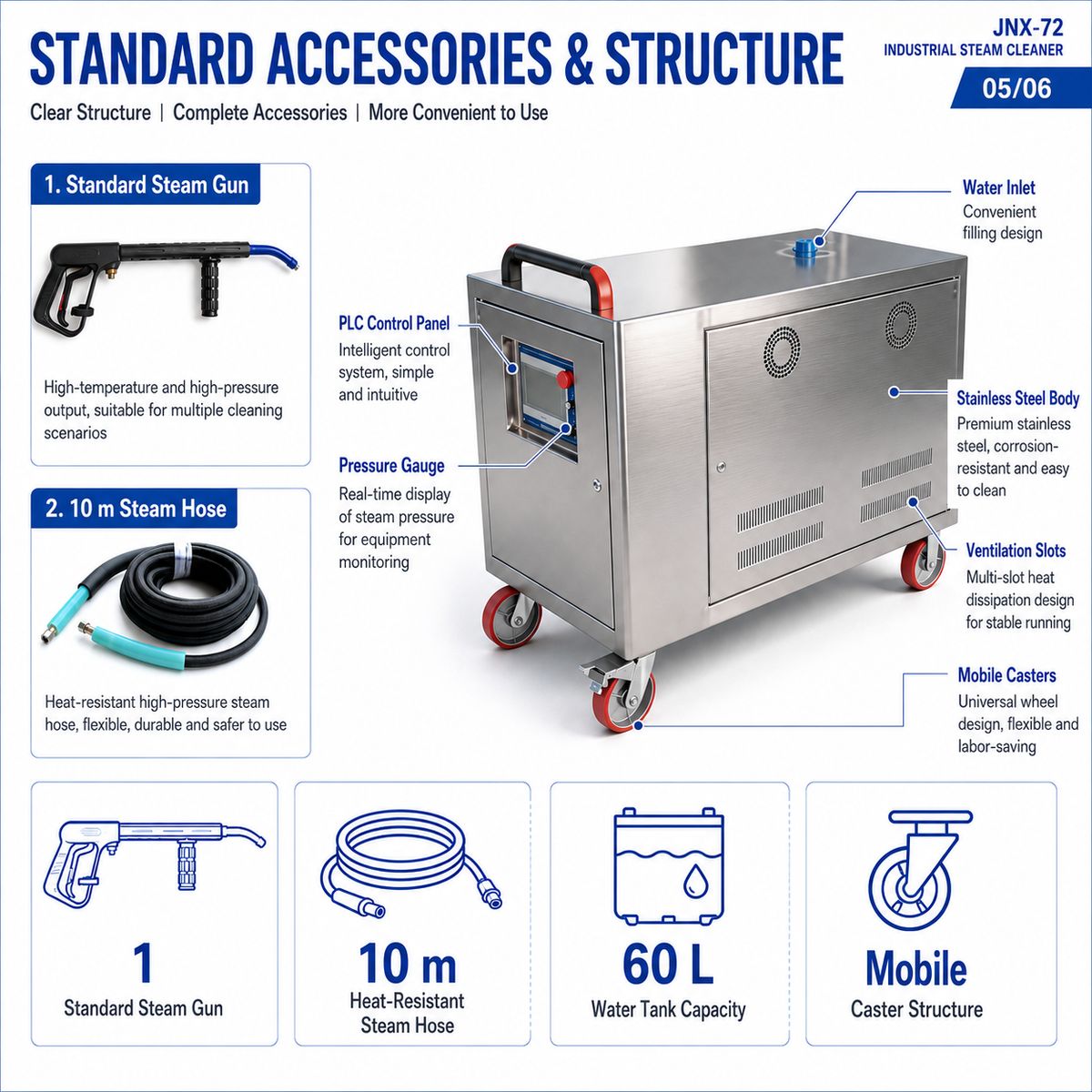

| Steam Hose Length | 10 meters |
| Steam Gun Quantity | 1 pc |
| Control System | PLC Intelligent Control |
| Shell Material | Stainless Steel |
| Inner Tank Material | Stainless Steel |
| Equipment Size | 1240 × 680 × 1035 mm |
| Equipment Weight | 180 kg |
| Package Size | 1320 × 830 × 1170 mm |
| Package Weight | 200 kg |
| Continuous Working Time | 24 hours |
| Safety Protection | Water Shortage, Overpressure, Leakage, Emergency Stop |
| Warranty Period | 1 Year |
| Place of Shipment | Zhujin Road 30, Shantou, Guangdong, China |
Product Details

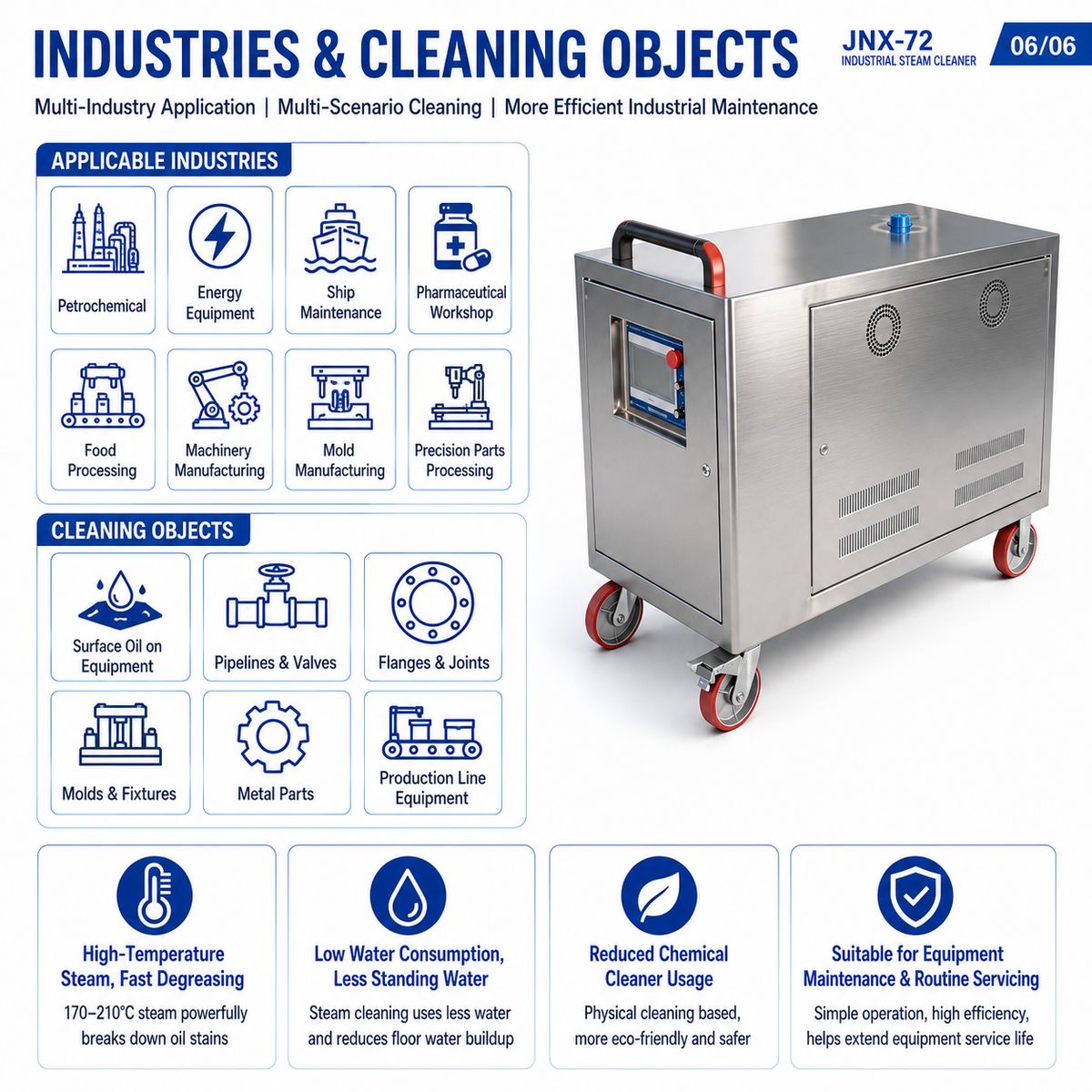

Industrial Applications
Petrochemical Equipment Cleaning
Powerful degreasing for refineries, chemical plants, storage tanks, and processing equipment.
Energy & Power Equipment Maintenance
Removes carbon deposits and oil contamination from turbines, generators, and transformers.
Ship & Marine Maintenance
High-temperature steam cleans engine rooms, deck machinery, and marine equipment without excess water.
Heavy Machinery Manufacturing
Deep cleaning of production lines, machine tools, molds, and precision metal parts.
Certifications
JIENENG holds 7 international certifications including CE, ISO 9001, ISO 14001, ISO 45001, EAC, ATEX, High-Tech Enterprise.
