JNX-48 Industrial Steam Cleaner
The JNX-48 is a 48kW heavy-duty industrial steam cleaner delivering 20-25 bar steam pressure at 170-210°C. Built for oilfield equipment, petrochemical plants, pipelines, valves, and heavy machinery maintenance, it features a 60L stainless-steel water tank, PLC intelligent control, and supports 24-hour continuous operation for large-scale degreasing and surface cleaning tasks.

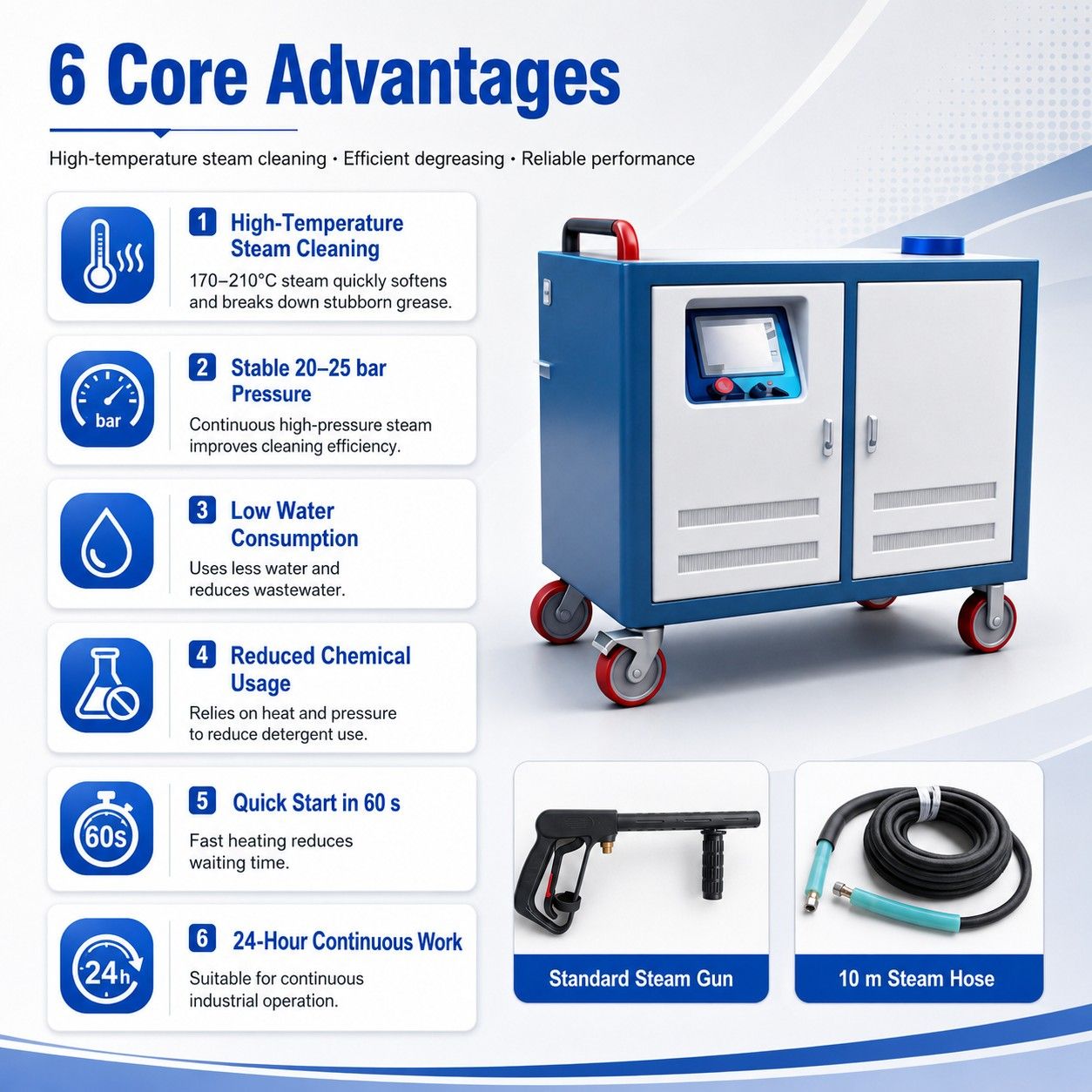

Key Features
48kW Heavy-Duty Power
High-capacity heating system delivers rapid steam generation and stable output for large-scale industrial cleaning.
20-25 bar Steam Pressure
Higher working pressure removes stubborn grease, carbon deposits, and heavy contamination from industrial surfaces.
170-210°C High-Temperature Steam
High-temperature steam softens grease and sanitizes surfaces without harsh chemicals.
96-144 L/H Steam Flow Rate
Large steam flow supports efficient cleaning over large equipment and extended work areas.
60L Water Tank
Extra-large tank capacity enables long-duration operation with fewer refills.

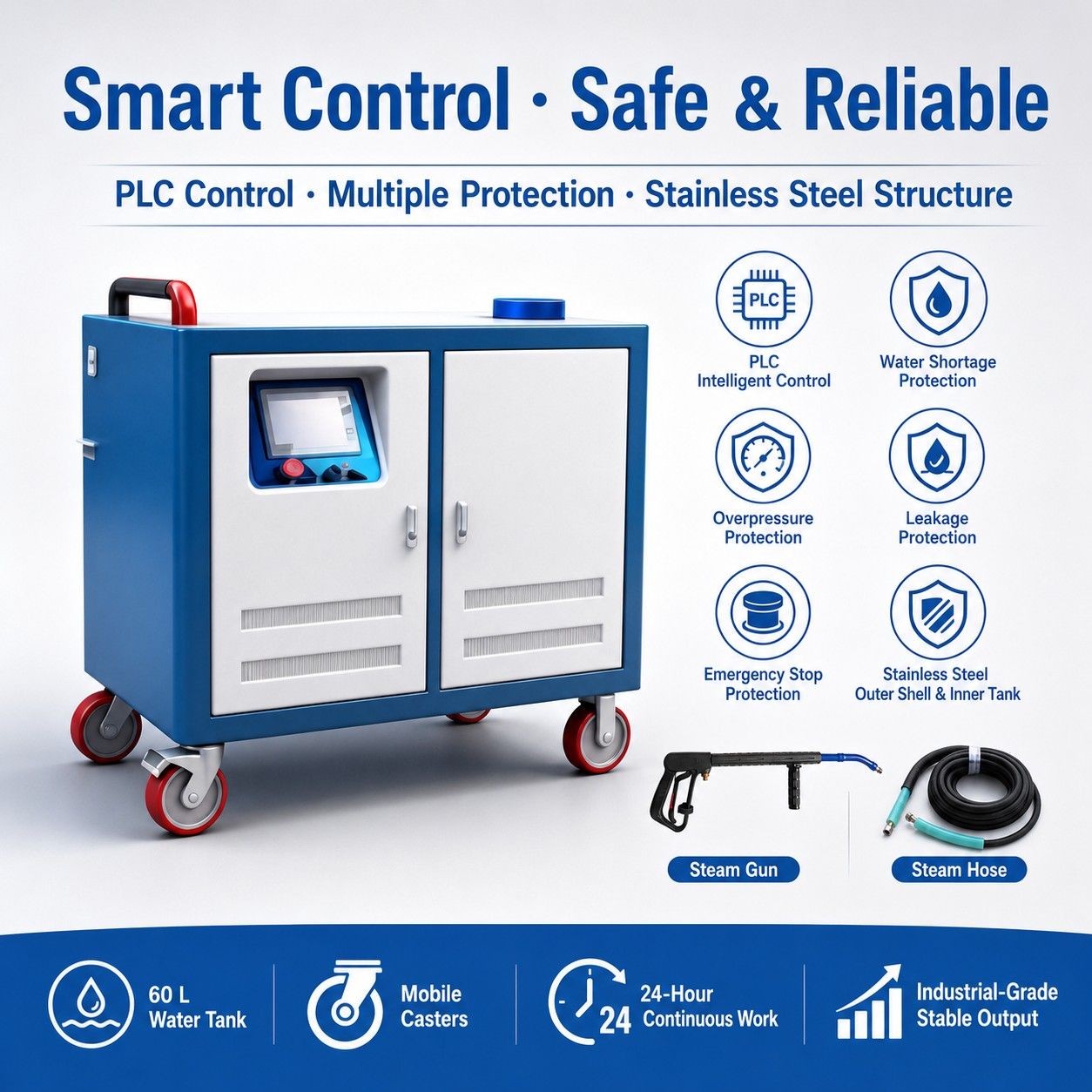

PLC Intelligent Control
Touch-screen control panel monitors temperature, pressure, and running status in real time.
24-Hour Continuous Operation
Engineered for non-stop industrial workloads with multiple safety protections.
Stainless Steel Construction
Corrosion-resistant stainless-steel shell and inner tank for long service life in harsh environments.

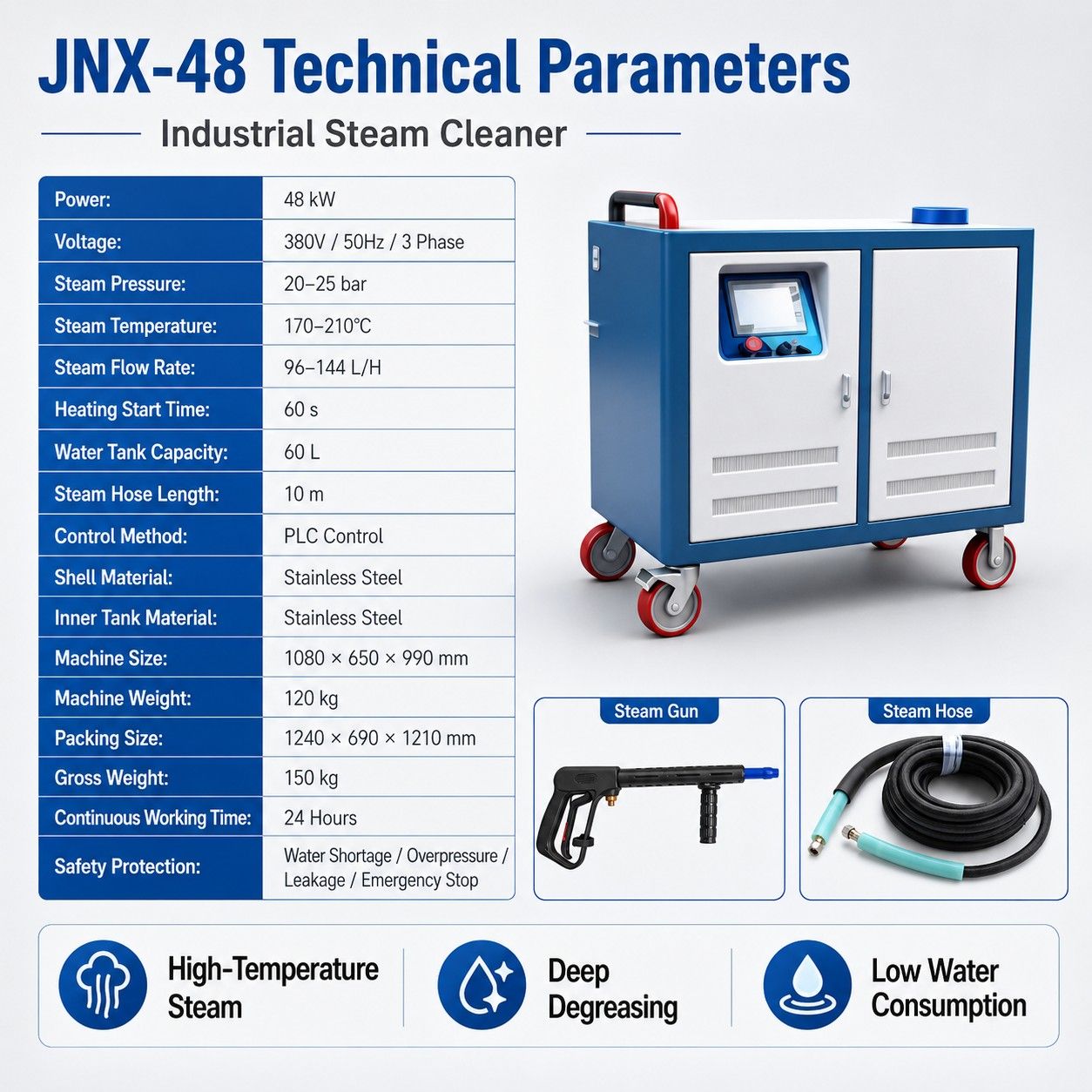

Technical Specifications
| Product Name | Industrial Steam Cleaner |
| Brand | Jieneng |
| Model | JNX-48 |
| Power | 48 kW |
| Voltage | 380V / 50Hz / 3 Phase |
| Steam Pressure | 20-25 bar |
| Steam Temperature | 170-210°C |
| Steam Flow Rate | 96-144 L/H |
| Heating Start-up Time | 60 seconds |
| Water Tank Capacity | 60L |
| Steam Hose Length | 10 meters |
| Steam Gun Quantity | 1 pc |
| Control System | PLC Intelligent Control |
| Shell Material | Stainless Steel |
| Inner Tank Material | Stainless Steel |
| Equipment Size | 1080 × 650 × 990 mm |
| Equipment Weight | 120 kg |
| Package Size | 1240 × 690 × 1210 mm |
| Package Weight | 150 kg |
| Continuous Working Time | 24 hours |
| Safety Protection | Water Shortage, Overpressure, Leakage, Emergency Stop |
| Warranty Period | 1 Year |
| Place of Shipment | Zhujin Road 30, Shantou, Guangdong, China |
Product Details
Industrial Applications

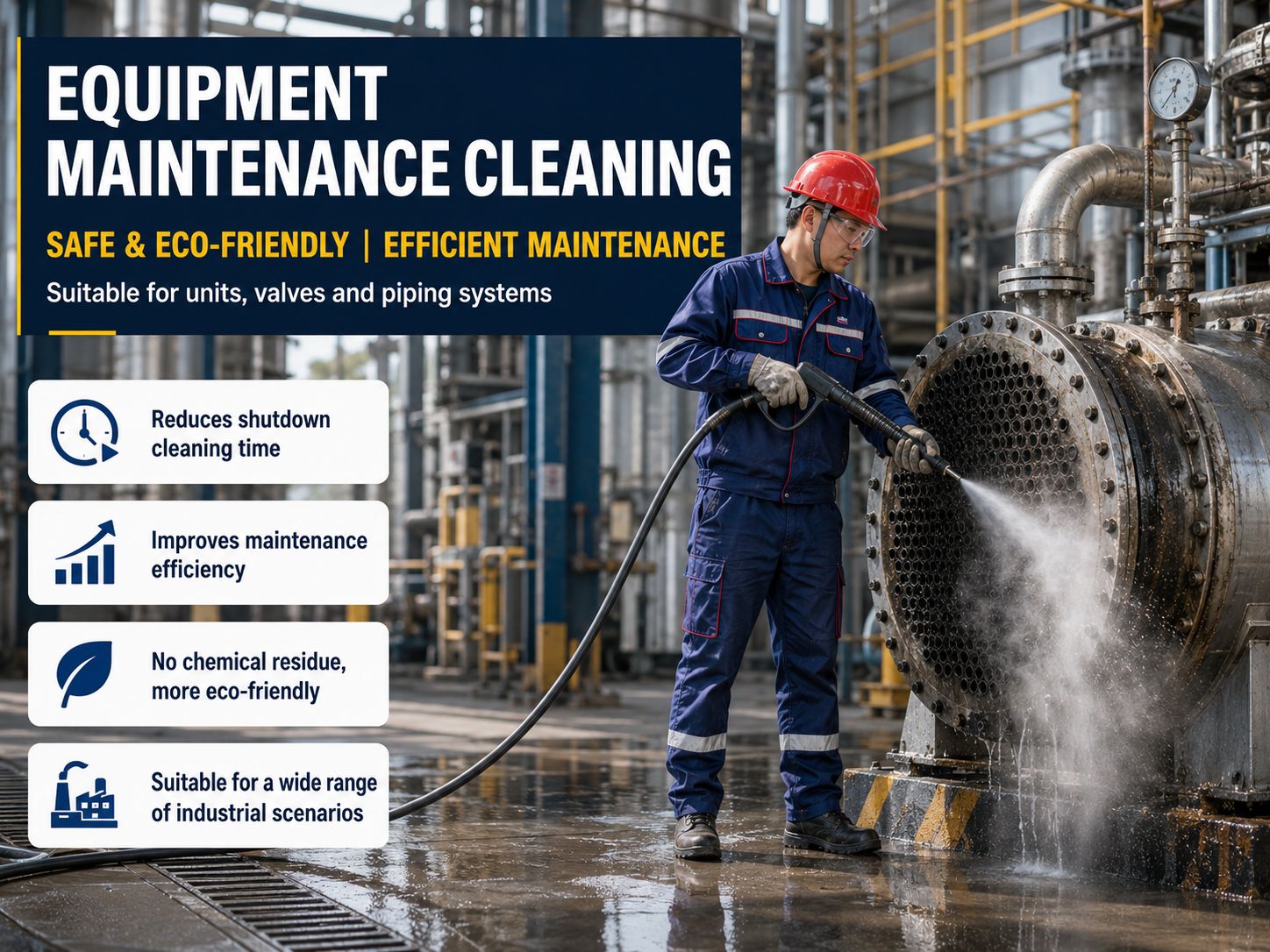

Equipment Maintenance Cleaning
Reduces shutdown cleaning time for heat exchangers, units, valves, and piping systems.

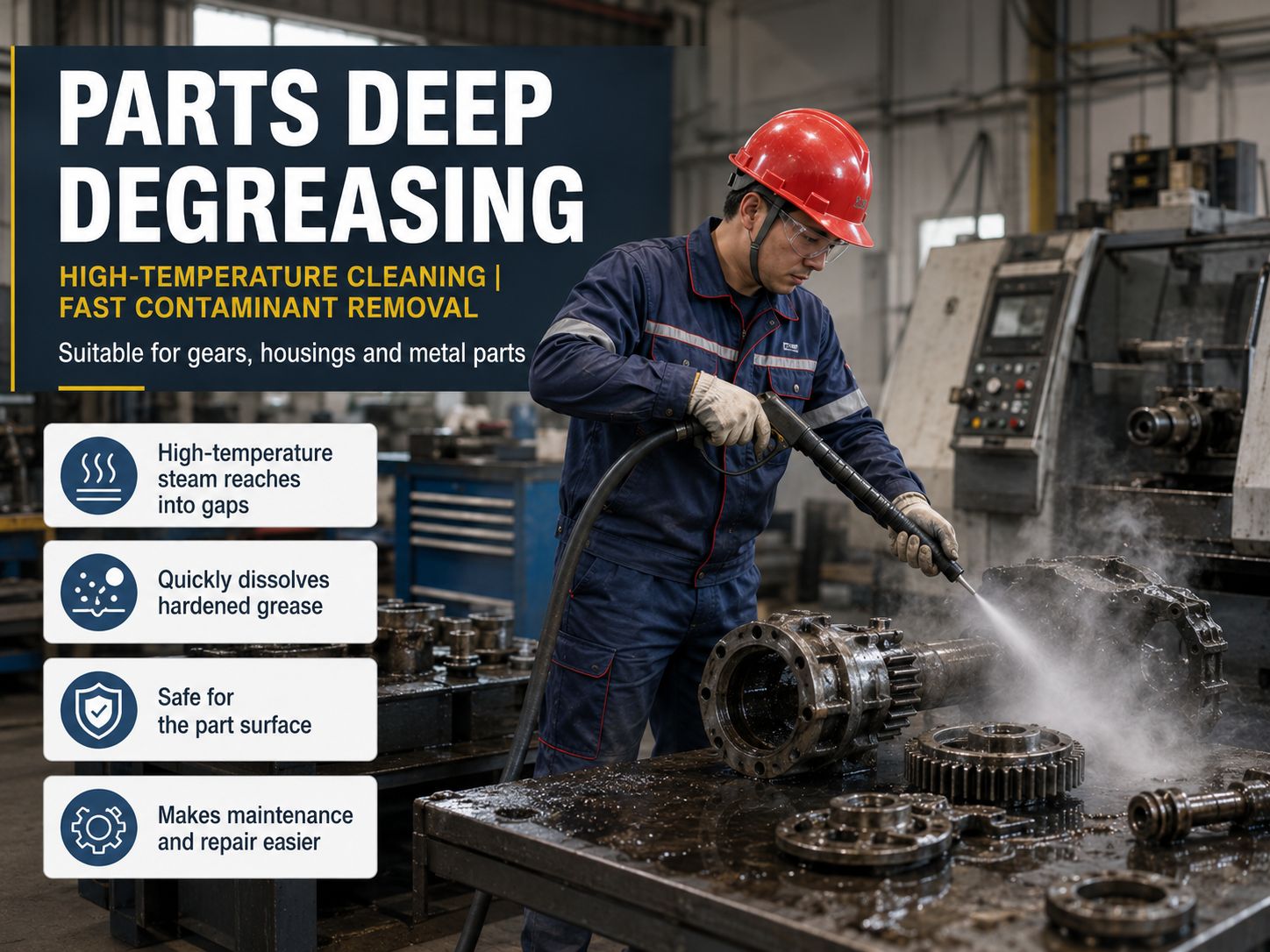

Parts Deep Degreasing
High-temperature steam reaches into gaps to dissolve hardened grease on gears, housings, and metal parts.

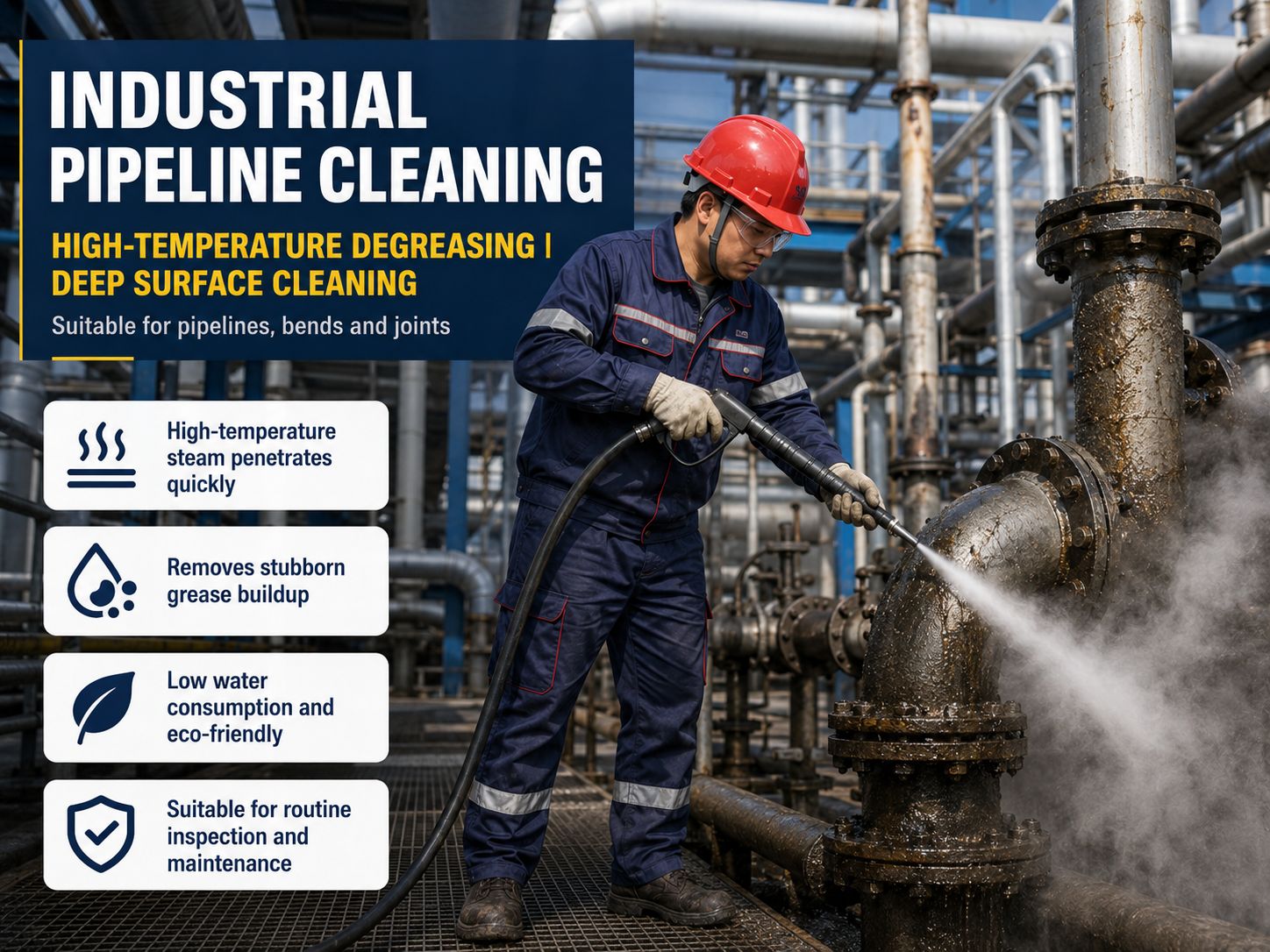

Industrial Pipeline Cleaning
Steam penetrates pipelines, bends, and joints to remove stubborn grease buildup and contamination.

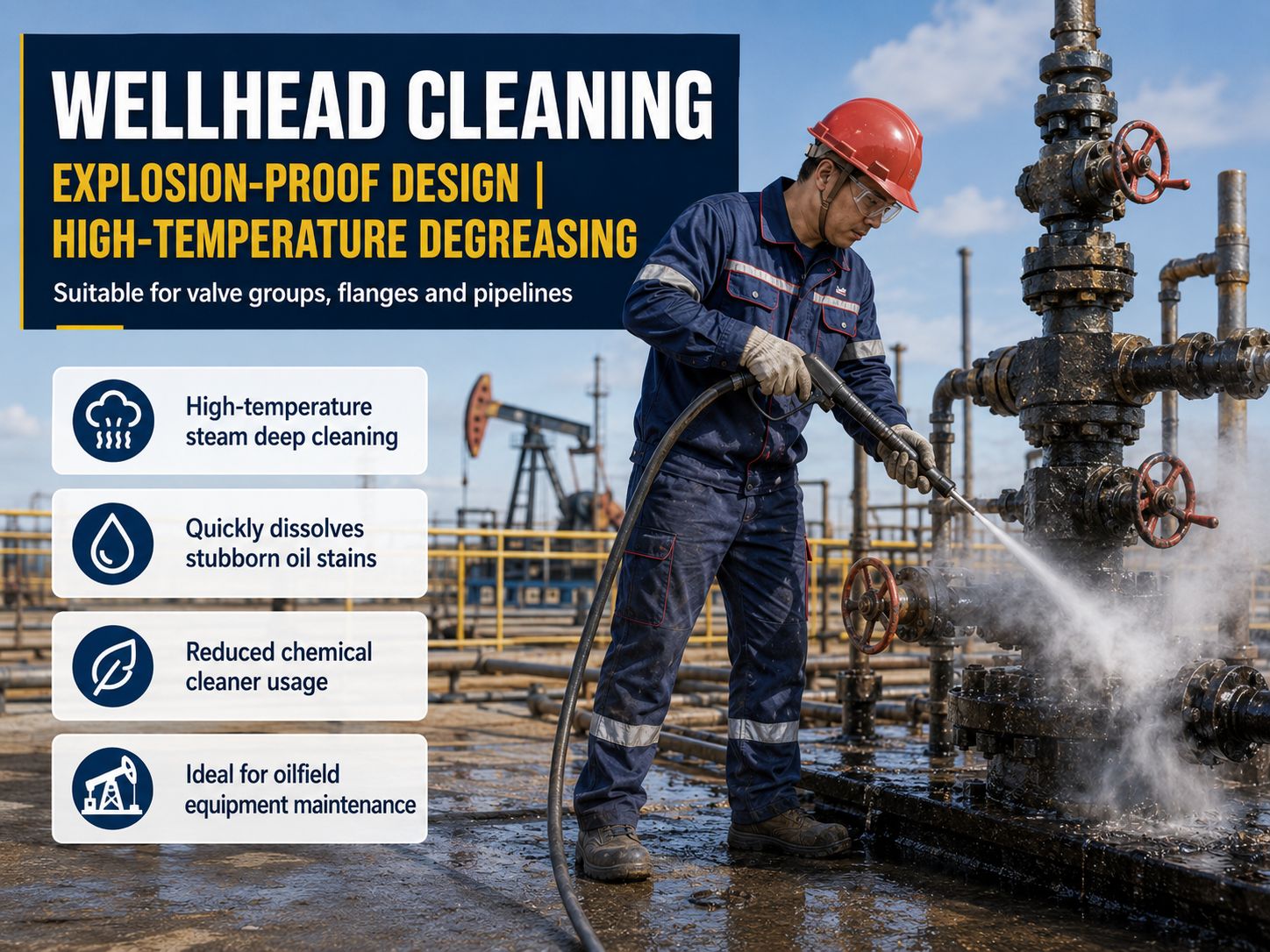

Oilfield Wellhead Cleaning
Explosion-proof design and high-temperature degreasing for oilfield wellheads, valve groups, and flanges.
Certifications
JIENENG holds 7 international certifications including CE, ISO 9001, ISO 14001, ISO 45001, EAC, ATEX, High-Tech Enterprise.
Interested in the JNX-48 Industrial Steam Cleaner?
Contact us for a quote or more information. OEM/ODM services available.
