JNX-36 Industrial Steam Cleaner
The JNX-36 is a 36kW heavy-duty industrial steam cleaner delivering 15-20 bar steam pressure at 170-210°C. Designed for petrochemical plants, energy equipment, ship maintenance, pharmaceutical workshops, and machinery manufacturing, it features PLC intelligent control, an 18L stainless-steel water tank, and supports 24-hour continuous operation for demanding degreasing and surface cleaning tasks.
Key Features
36kW High Power
Powerful heating system delivers stable steam output for continuous industrial operation.
15-20 bar Steam Pressure
Stable high pressure effectively removes grease and stubborn contamination from industrial surfaces.
170-210°C High-Temperature Steam
High-temperature steam quickly softens grease, carbon deposits, and lubricants without harsh chemicals.
72-108 L/H Steam Flow Rate
Large steam flow rate balances cleaning efficiency and stable output for large-area cleaning.
PLC Intelligent Control
Intelligent control panel provides clear temperature, pressure, and running status monitoring.
24-Hour Continuous Operation
Built for long-duration factory cleaning and maintenance tasks.
18L Water Tank
Large-capacity tank supports extended cleaning sessions with fewer refills.
10m Heat-Resistant Steam Hose
Flexible, durable steam hose for safe, high-temperature operation across large work areas.

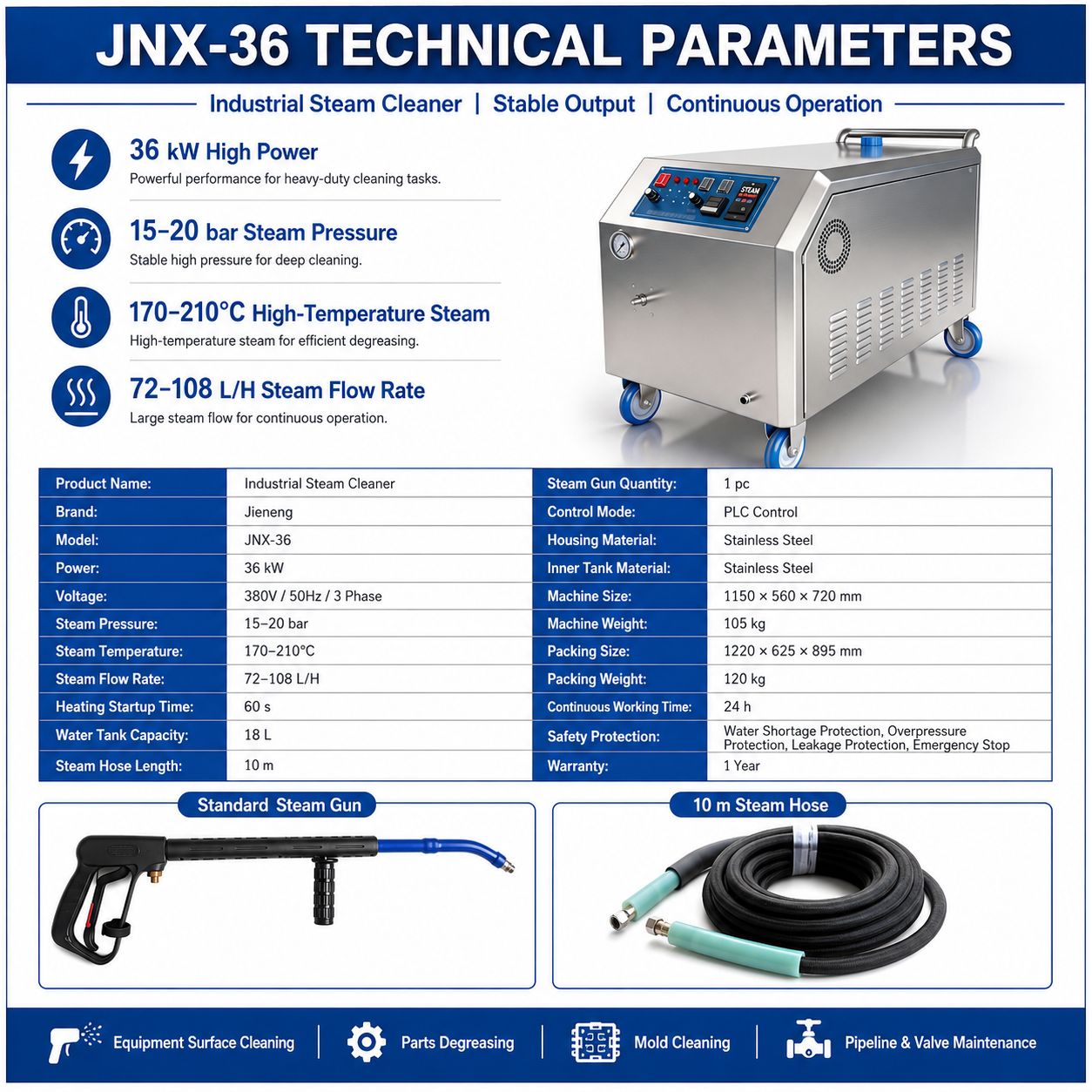

Technical Specifications
| Product Name | Industrial Steam Cleaner |
| Brand | Jieneng |
| Model | JNX-36 |
| Power | 36 kW |
| Voltage | 380V / 50Hz / 3 Phase |
| Steam Pressure | 15-20 bar |
| Steam Temperature | 170-210°C |
| Steam Flow Rate | 72-108 L/h |
| Heating Start-up Time | 60 seconds |
| Water Tank Capacity | 18L |
| Steam Hose Length | 10 meters |
| Steam Gun Quantity | 1 pc |
| Control System | PLC Intelligent Control |
| Shell Material | Stainless Steel |
| Inner Tank Material | Stainless Steel |
| Equipment Size | 1150 × 560 × 720 mm |
| Equipment Weight | 105 kg |
| Package Size | 1220 × 625 × 895 mm |
| Package Weight | 120 kg |
| Continuous Working Time | 24 hours |
| Safety Protection | Water Shortage, Overpressure, Leakage, Emergency Stop |
| Warranty Period | 1 Year |
| Place of Shipment | Zhujin Road 30, Shantou, Guangdong, China |
Product Details
Industrial Applications
Equipment Maintenance Cleaning
Reduces shutdown cleaning time for units, valves, and piping systems.
Equipment Surface Cleaning
Quickly softens grease and carbon deposits on machine frames, outer shells, and bases.

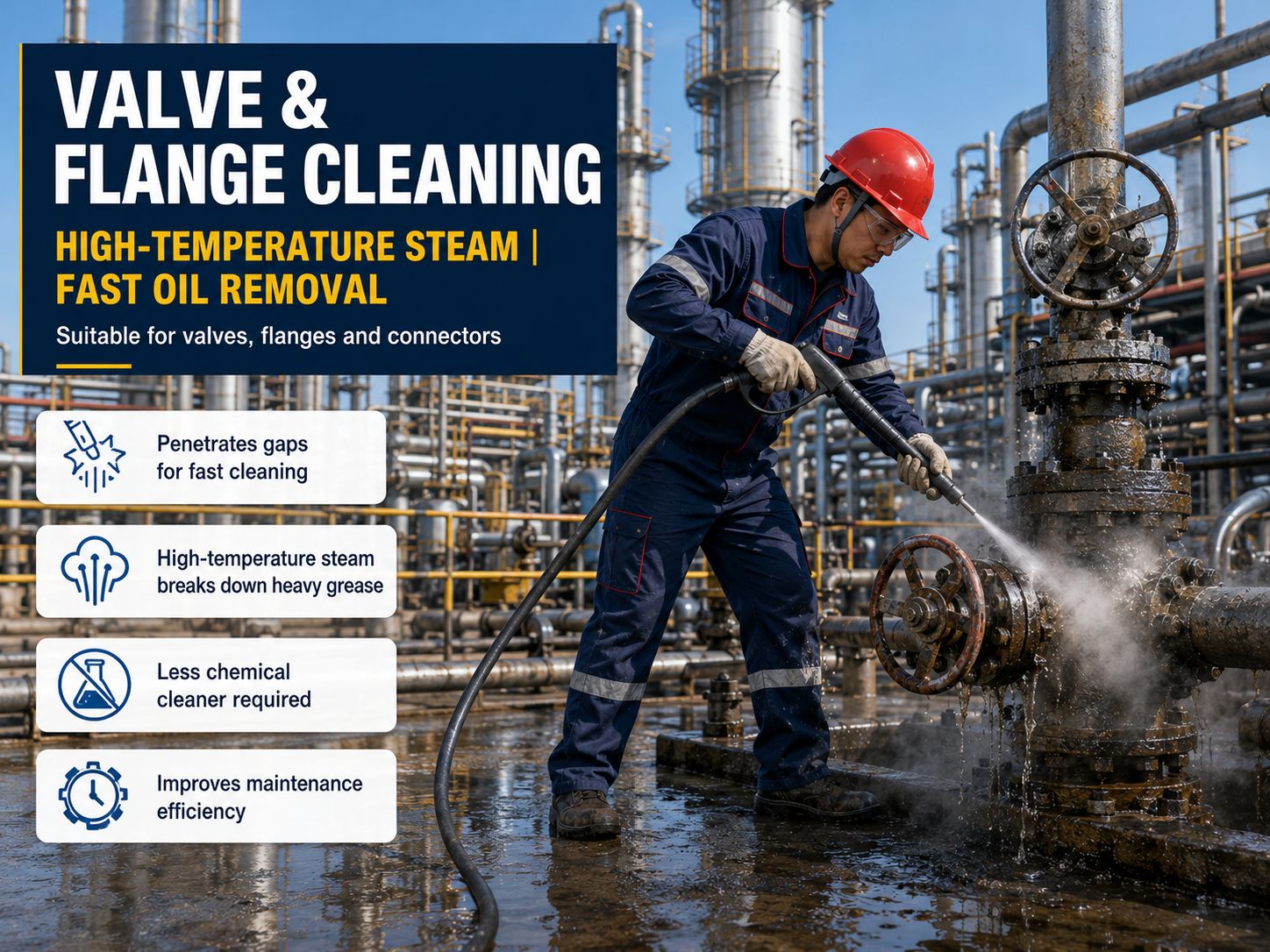

Valve & Flange Cleaning
Steam penetrates gaps for fast cleaning of valves, flanges, and connectors.
Certifications
JIENENG holds 7 international certifications including CE, ISO 9001, ISO 14001, ISO 45001, EAC, ATEX, High-Tech Enterprise.
Interested in the JNX-36 Industrial Steam Cleaner?
Contact us for a quote or more information. OEM/ODM services available.
