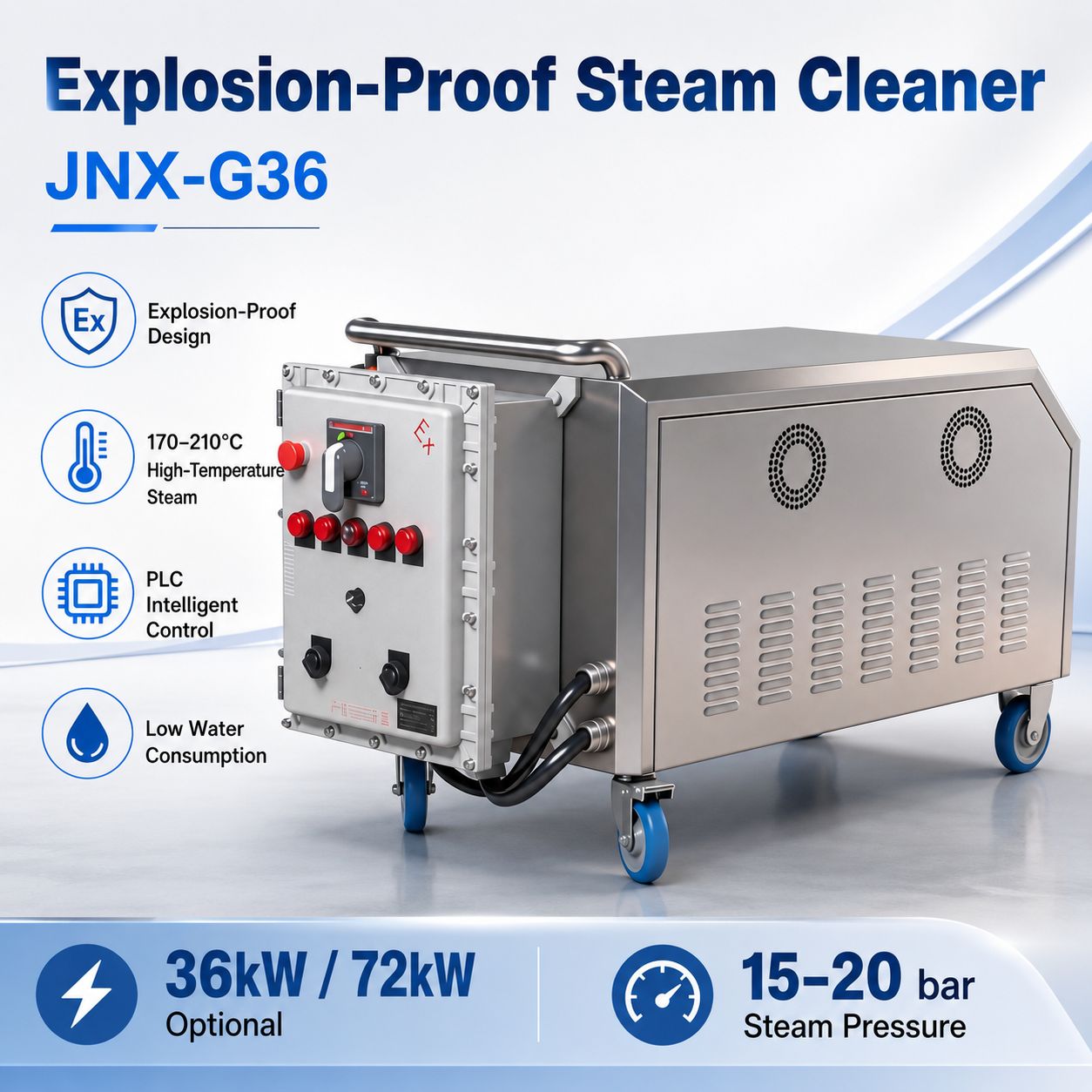

JNX-G36 Explosion-Proof Steam Cleaner
The JNX-G36 is an ATEX and EAC certified explosion-proof steam cleaner designed for safe operation in hazardous industrial environments. Delivering 36kW power (72kW optional), 15-20 bar steam pressure, and 170-210°C high-temperature steam, it is built for petrochemical plants, energy equipment, ship maintenance, pharmaceutical workshops, painting workshops, food processing, and machinery manufacturing. The explosion-proof electrical control system, PLC intelligent control, and 60L stainless-steel water tank support 24-hour continuous operation with comprehensive safety protections.
Key Features
Explosion-Proof Design
ATEX and EAC certified explosion-proof electrical control system for safe operation in hazardous areas.
36kW / 72kW Power Options
Flexible power configurations to match different cleaning workloads and site conditions.
15-20 bar Steam Pressure
High-pressure steam effectively removes stubborn oil, grease, and carbon deposits from industrial surfaces.
170-210°C High-Temperature Steam
High-temperature steam quickly softens grease and sanitizes surfaces without harsh chemicals.
PLC Intelligent Control
Intelligent control panel provides stable operation and easy monitoring of temperature and pressure.
60L Water Tank
Large-capacity stainless-steel tank supports extended cleaning sessions with fewer refills.
24-Hour Continuous Operation
Built for long-duration industrial cleaning in demanding environments.
Multiple Safety Protections
Low-water, overpressure, leakage, and emergency-stop protections ensure safe operation.

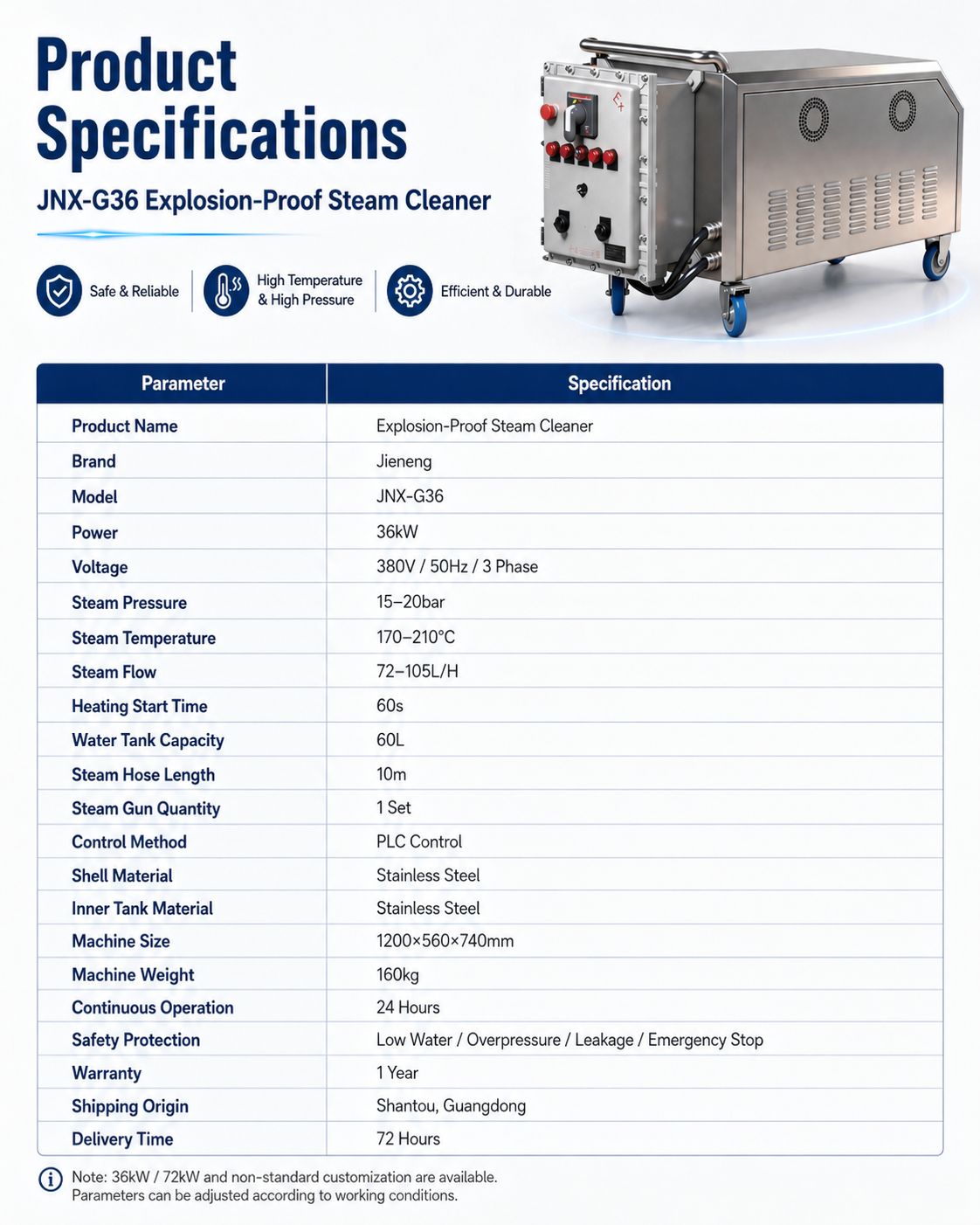

Technical Specifications
| Product Name | Explosion-Proof Steam Cleaner |
| Brand | Jieneng |
| Model | JNX-G36 |
| Power | 36 kW (72 kW optional) |
| Voltage | 380V / 50Hz / 3 Phase |
| Steam Pressure | 15-20 bar (customizable) |
| Steam Temperature | 170-210°C |
| Steam Flow Rate | 72-105 L/H |
| Heating Start-up Time | 60 seconds |
| Water Tank Capacity | 60L |
| Steam Hose Length | 10 meters |
| Steam Gun Quantity | 1 Set |
| Control System | PLC Intelligent Control |
| Shell Material | Stainless Steel |
| Inner Tank Material | Stainless Steel |
| Explosion-Proof Rating | ATEX / EAC Certified |
| Equipment Size | 1200 × 560 × 740 mm |
| Equipment Weight | 160 kg |
| Continuous Working Time | 24 hours |
| Safety Protection | Low Water / Overpressure / Leakage / Emergency Stop |
| Warranty Period | 1 Year |
| Place of Shipment | Zhujin Road 30, Shantou, Guangdong, China |
| Delivery Time | 72 Hours |

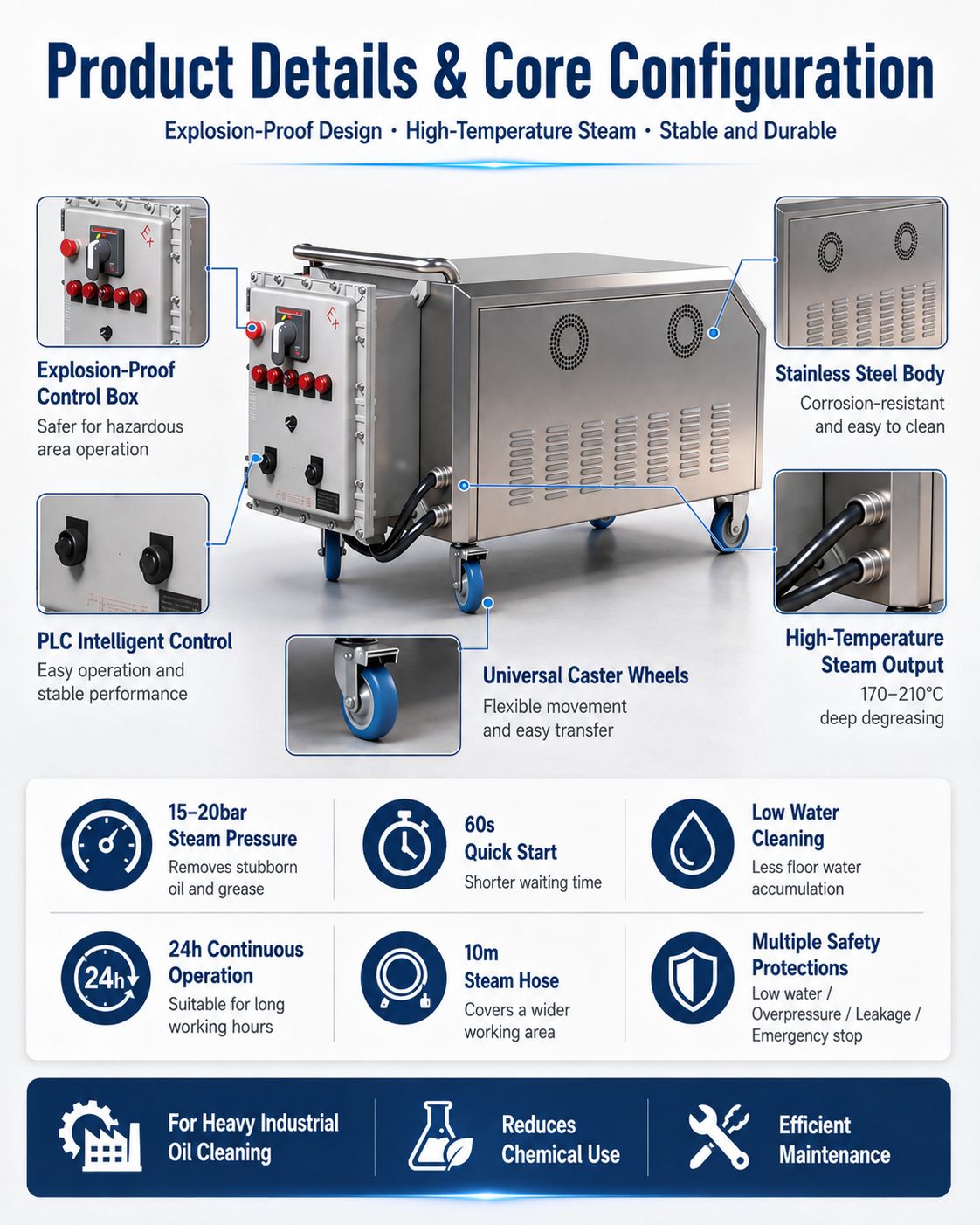

Product Details
Industrial Applications
Petrochemical Equipment
Safe cleaning of reactors, storage tanks, pumps, and external surfaces in hazardous areas.
Chemical Reactor Cleaning
Explosion-proof steam cleaning for reactors, flanges, and pipe joints in chemical plants.

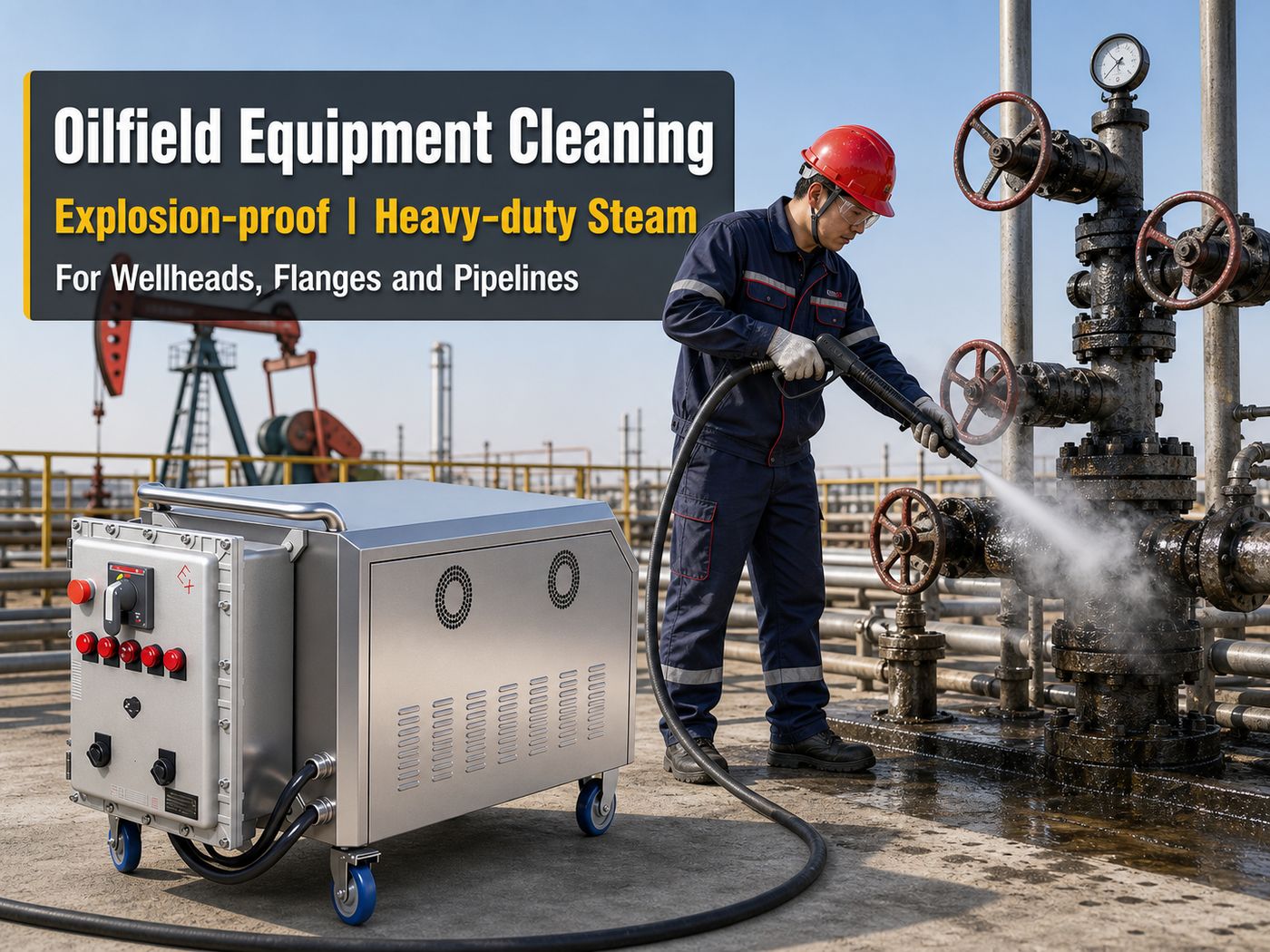

Oilfield Equipment
Heavy-duty steam degreasing for wellheads, flanges, and pipelines in oil and gas fields.
Pharmaceutical & Food Equipment
Less chemical residue and safer cleaning for equipment in hygiene-sensitive industries.

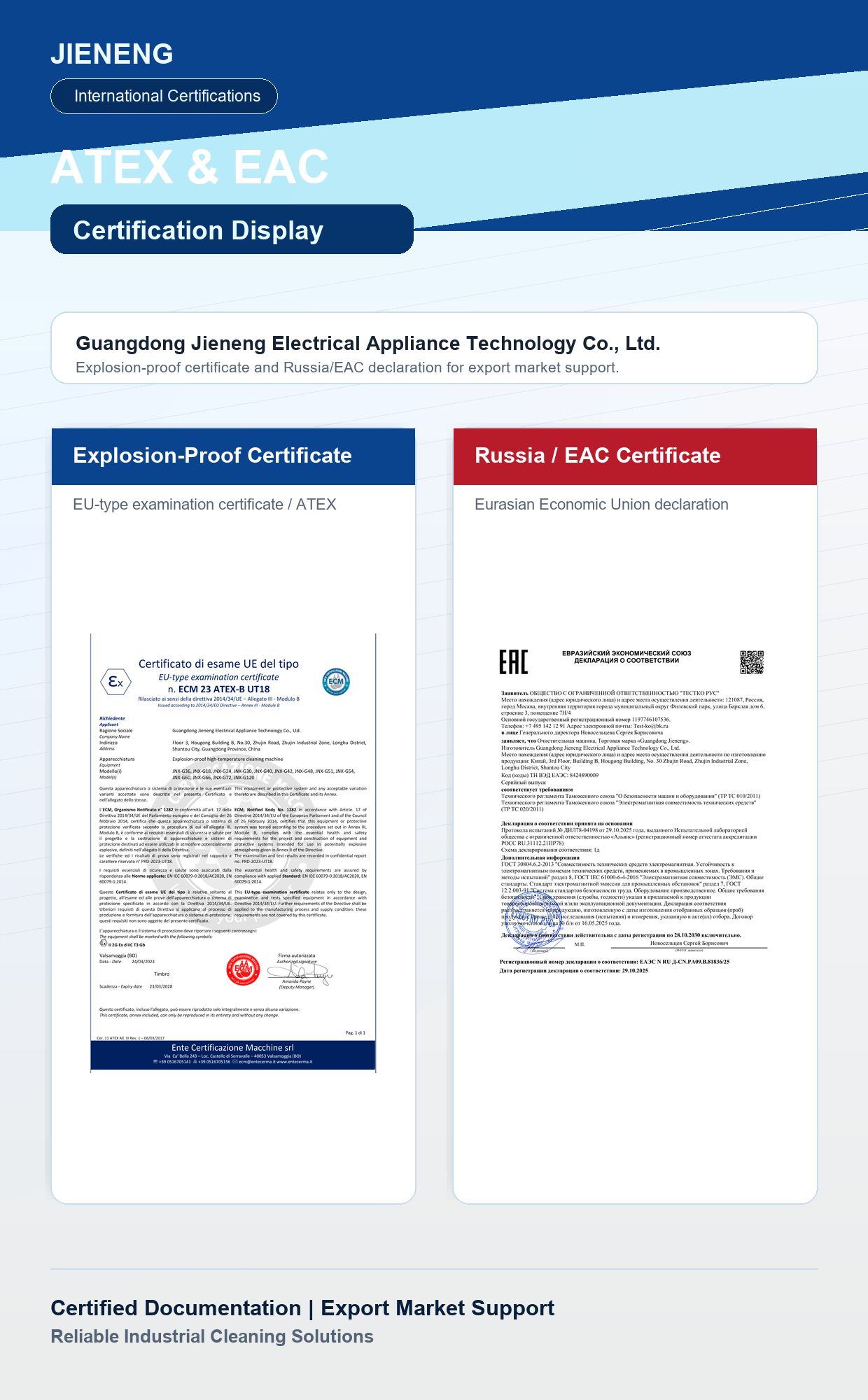

Certifications
The JNX-G36 explosion-proof steam cleaner is certified for use in hazardous environments with ATEX and EAC compliance.
Interested in the JNX-G36 Explosion-Proof Steam Cleaner?
Contact us for a quote, customization options, or more information. OEM/ODM services available.
